Add colors for repair status
This chapter describes how you can define a color to graphically represent the repair status in the Beyond Scheduler planning board. You can use the color to read the repair status of the corresponding service order (or worksheet).
To define a color for the repair status, proceed as follows:
- Open the search (ALT+Q) and search for the page Repair Status Setup.
- The Repair Status Setup page is displayed.

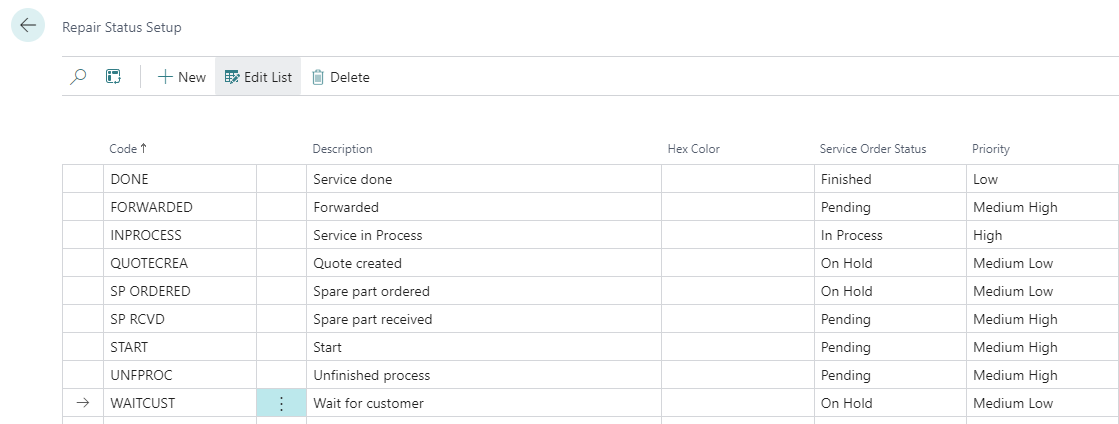

Figure: Repair Status Setup - You can enter a color value under the Hex Color column. Below you will find some examples that you can use:
#FF0000
#FF8000
#FFFF00
#40FF00
#1DFD70
#0404B4
#B404AE

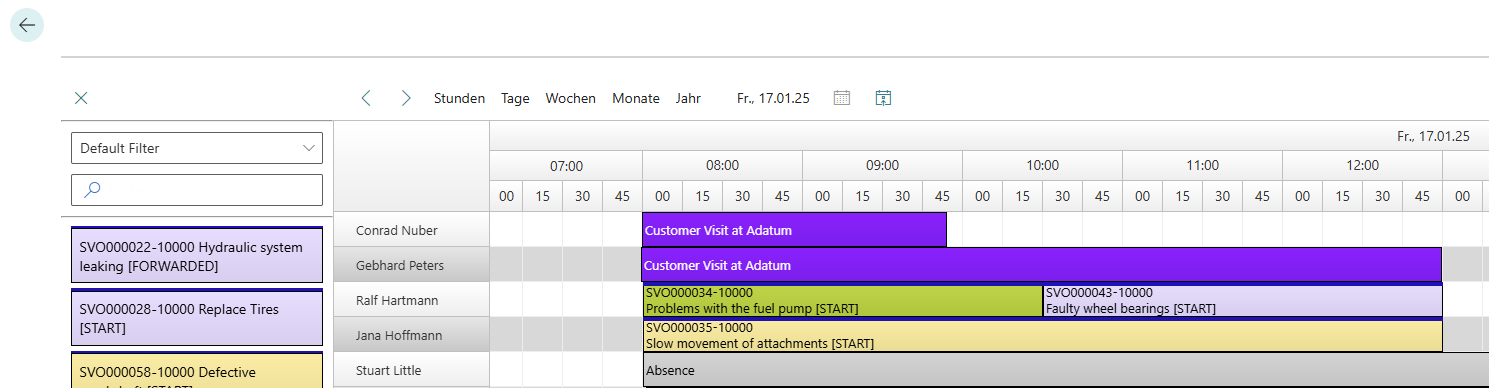

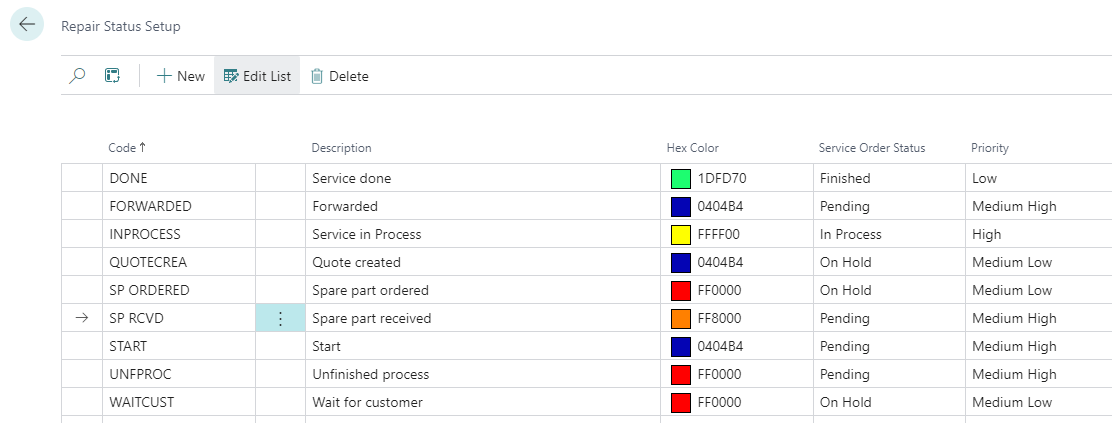

Figure: Configured colors for repair status

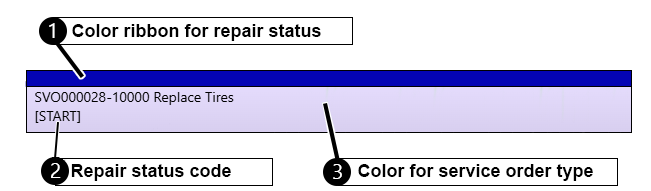

You have set up colors for repair statuses. The repair status and the color are displayed in the planning board. The color you have set for the repair status is displayed as a band (1) above the tile on the planning board. The repair status code is displayed in brackets after the service line description (2). For more information on how to store a color for service order types (3), see the chapter Add colors to service order types.
